Comprehensive Hematology Analysis with 5-part Differential
The VETSCAN® HM5 is a fully automated 5-part cell counter offering a comprehensive 22-parameter Complete Blood Count (CBC) with cellular histograms in minutes. Its superior performance, ease of use, and minimal maintenance make the HM5 the ideal hematology system for veterinary practices, clinics and research laboratories.
Simple Operation

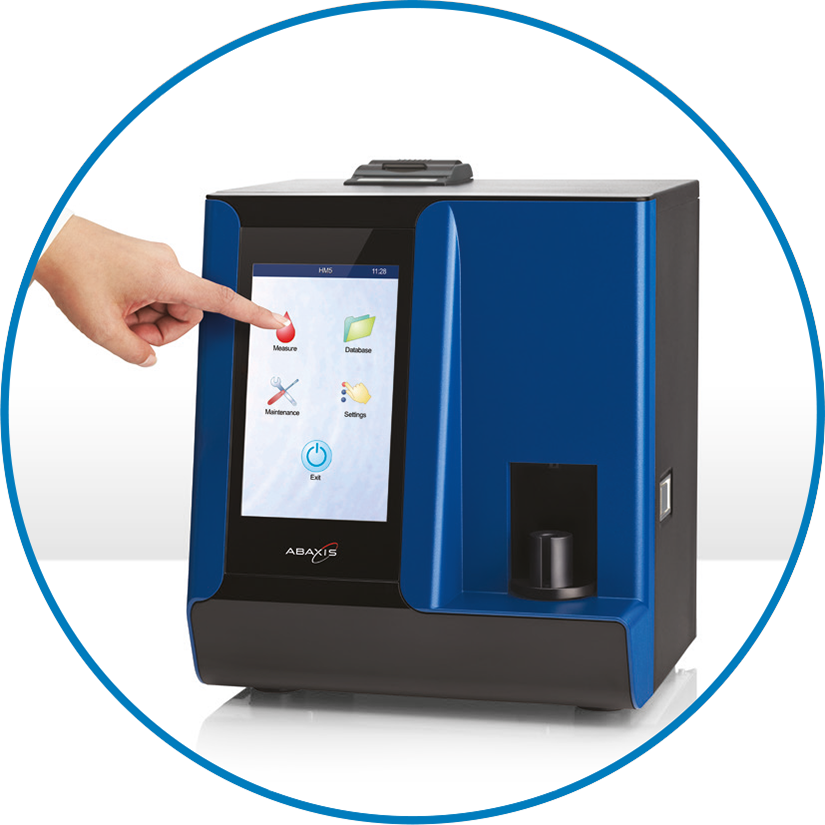

Enter information

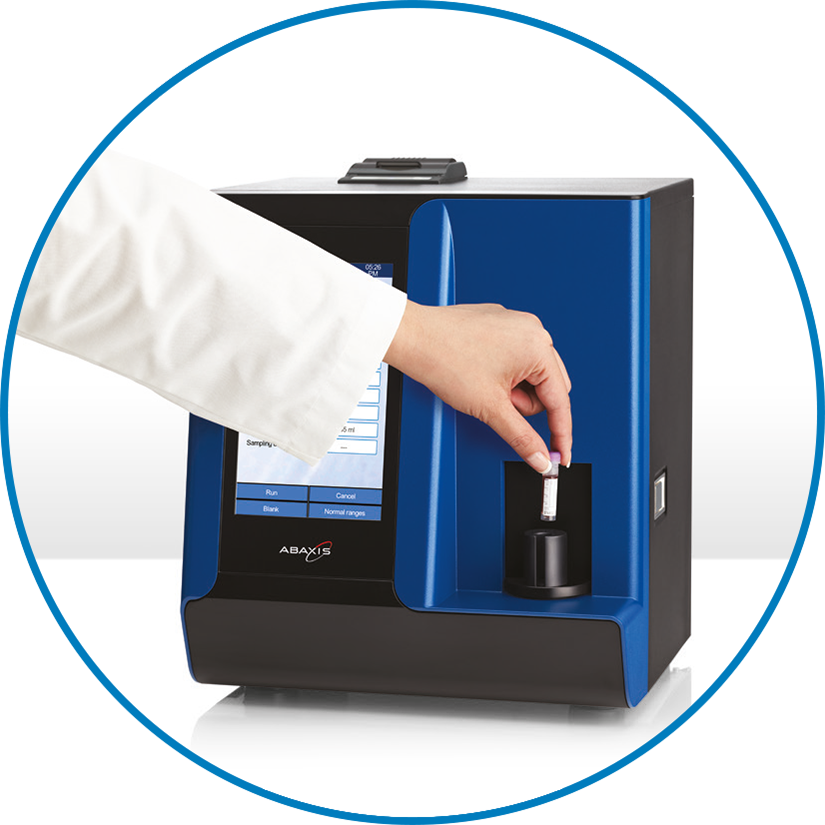

Insert sample
Read results

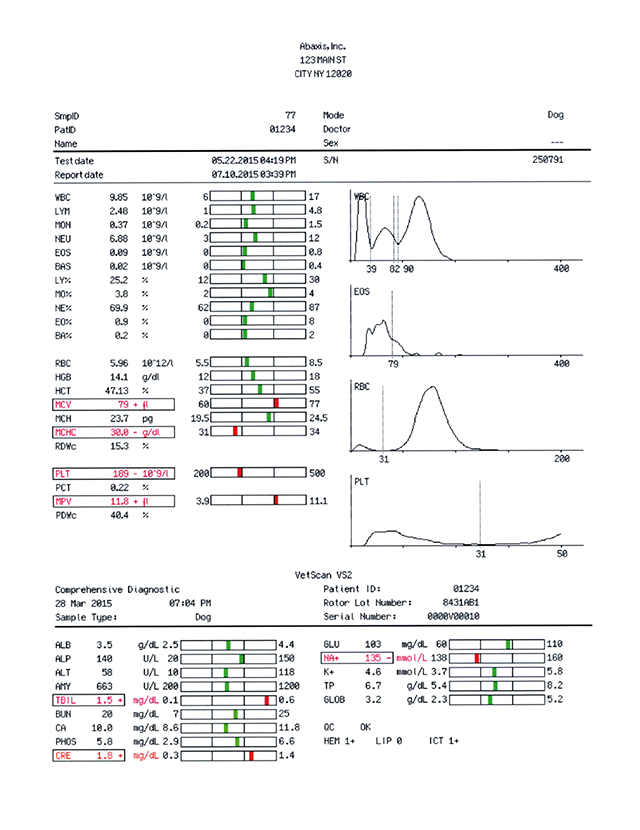

Combined Hematology and Chemistry Report
You can easily combine the results of the HM5 and VETSCAN VS2 chemistry analyzer in one printout. The system delivers the integrated laboratory results of your patients in a clearly arranged report. This feature enables you to make well informed clinical decisions on site
Data included:
- Patient information
- Patient species
- Sample ID (assigned automatically)
- Report date (assigned automatically) and analyzer serial number
- Test parameters
- Test results and units
- Reference ranges
- WBC histogram
- EOS histogram
- RBC histogram
- PLT histogram
- Integrated VETSCAN VS2 results
Analyze a Wide Range of Species
5-Part Differential
available for 6 Species
Cat
Dog
Horse
Cattle
Llama
Alpaca
3-Part Differential
available for 9 Species
Pig
Goat**
Sheep
Rat
Ferret
Mouse
Guinea Pig
Rabbit
Monkey
** excluding PLT parameters
The HM5 offers you the flexibility to analyze the most common and even uncommon species, which makes it ideal for veterinary clinics, zoos, barns and research laboratories.
Learn more about the Test Portfolio
Further Diagnostic Products
| Chemistry + Hematology | Urinalysis | Specialty |
|---|---|---|
| › VETSCAN VS2 Chemistry Analyzer | › VETSCAN UA Urine Analyzer | › VETSCAN VSpro Specialty Analyzer |
| › VETSCAN HM5 Hematology Analyzer | › VETSCAN SA Sediment Analyzer | › VETSCAN Rapid Tests + VUE |
| › i-STAT Alinity v Handheld Analyzer | › VETSCAN HDmicroscope | |
| › VETSCAN FUSE | ||
| › AlphaTRAK Glucose Meter |
MM-08377
Comprehensive 22-parameter Complete Blood Count (CBC)
- Actual Direct EOS Measurements
- Ideal for small or young animals
- Even for allergic and parasitic cases
- Rapid turnaround time (3–4 minutes to results)
- Histograms serve as a quality control check
5-part
differential
Species
Dog
Cat
Horse
Cattle
Llama
Alpaca
3-part
differential
Species
Pig
Goat**
Sheep
Rat
Ferret
Mouse
Guinea Pig
Rabbit
Monkey
| CBC Parameters | Abbr. | Histogram* | Histogram* | ||
|---|---|---|---|---|---|
| Total white blood cell count | WBC | ||||
| Lymphocyte count | LYM | ||||
| Monocyte count | MON | ||||
| Granulocyte count | GRA | ||||
| Neutrophil count | NEU | ||||
| Eosinophil count | EOS | ||||
| Basophil count | BAS | ||||
| Lymphocyte percentage | LY% | ||||
| Monocyte percentage | MO% | ||||
| Granulocyte percentage | GR% | ||||
| Neutrophil percentage | NE% | ||||
| Eosinophil percentage | EO% | ||||
| Basophil percentage | BA% | ||||
| Red blood cell count | RBC | ||||
| Hemoglobin | HGB | ||||
| Hematocrit | HCT | ||||
| Mean corpuscular volume | MCV | ||||
| Mean corpuscular hemoglobin | MCH | ||||
| Mean corpuscular hemoglobin concentration |
MCHC | ||||
| Red cell distribution width | RDWc | ||||
| Red cell distribution width | RDWs | ||||
| Platelet count | PLT | ||||
| Platelet hematocrit | PCT | ||||
| Mean platelet volume | MPV | ||||
| Platelet distribution width | PDWc | ||||
| Platelet distribution width | PDWs |
* additional histogram is provided
** excluding PLT parameters
Reproducibility You Can Rely On
Whether it is between different users or different instruments, the VETSCAN HM5 analyzer provides reproducibility you can count on.
Learn more about the VETSCAN HM5 Specifications.
Further Diagnostic Products
| Chemistry + Hematology | Urinalysis | Specialty |
|---|---|---|
| › VETSCAN VS2 Chemistry Analyzer | › VETSCAN UA Urine Analyzer | › VETSCAN VSpro Specialty Analyzer |
| › VETSCAN HM5 Hematology Analyzer | › VETSCAN SA Sediment Analyzer | › VETSCAN Rapid Tests + VUE |
| › i-STAT Alinity v Handheld Analyzer | › VETSCAN HDmicroscope | |
| › VETSCAN FUSE | ||
| › AlphaTRAK Glucose Meter |
MM-08377
Size
Height 36.5 cm / 14 in
Width 32 cm / 12.5 in
Depth 27 cm / 10.6 in
Weight 12 kg / 26.5 lbs
Key Facts at a Glance
- 22 parameters, including direct eosinophil count and eosinophil percentage
- 25-50 µl sample size
- Less than 4 minutes to results
- Contains pre-dilute mode for challenging samples
- Eco-friendly, cyanide-free reagents
- USB and ethernet ports
- Integrates with common practice management systems
- Fully automated
- Validated for peritoneal and synovial fluids
- Data trend feature
Details
| Power Requirements | 100-240 volts AC, 50-60 Hz; or 12 volts DC |
| Reported Parameters | 22 parameters, including: WBC, LYM, MON, NEU, BAS, EOS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PCT, PDW |
| Sample Size |
|
